Cleveland breaks with tradition, aims for more consistency with RTX-3 wedges

Published

10 years ago

Jul 25, 2016

Models: RTX-3 Blade ($129), RTX-3 Cavity Back ($129)
Availability: September 16, 2016
Lofts: 46, 48, 50, 52, 54, 56, 58, 60, 62, 64
Grinds: 1-Dot (54, 56, 58, 60), 2-Dot (All), 3-Dot (54, 56, 58, 60)
Stock Shaft: True Temper Dynamic Gold Wedge Flex
Stock Grip: Cleveland Blue Cap by Lamkin

With its new line of RTX-3 wedges, Cleveland is challenging the notion that its wedges have to look and perform mostly the same to earn the approval of the best players in the world.

“We don’t have a one-sized approach,” says Brian Schielke, Cleveland’s Senior Product Manager for Golf Clubs. “We don’t design a wedge for tour players, and then hope it works for everyone.”

While it’s clear the company’s new RTX-3 wedges were designed with PGA Tour players in mind, it’s the rest of the golfing population that could see the greatest benefits from the clubs.

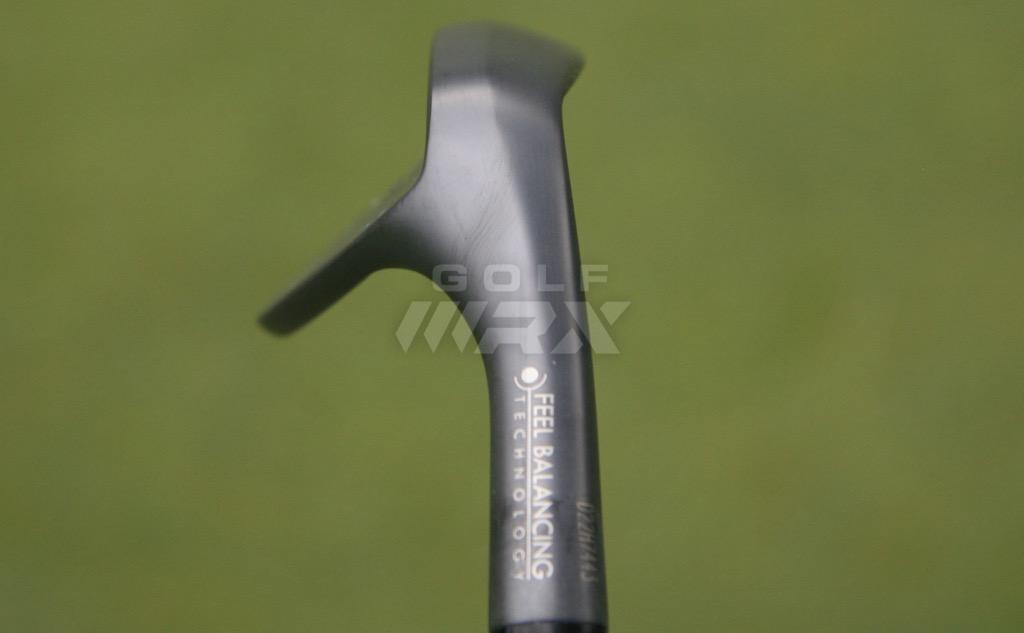

One reason is the RTX-3’s new Feel-Balancing Technology, which removes 9 grams of weight from the hosel to reposition the center of gravity (CG) closer to the center of the club face. That’s where most golfers aim to make contact, and the closer they contact shots to the CG, the more consistent their results are going to be.

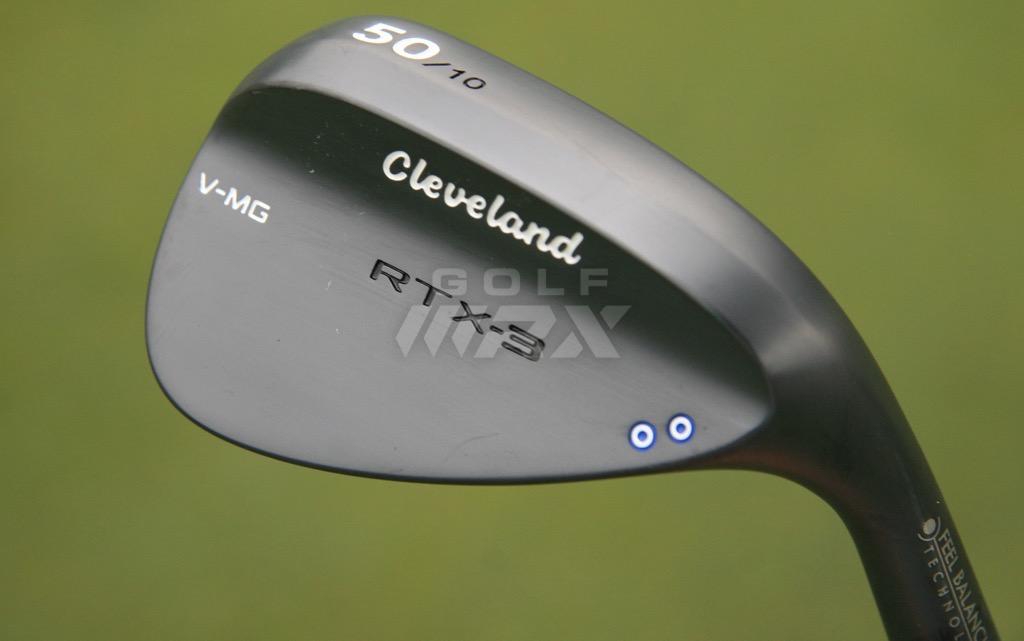

: Cleveland’s new Black Satin finish is much more durable than previous black finishes.

According to Patrick Ripp, Cleveland’s Senior Research Engineer, the majority of wedges used on the PGA Tour have a CG that’s located closer to the heel of the club – but that’s not much of a problem for them. “The pros naturally find the CG of the wedge, even if it’s a little heel-biased,” Ripp says. Average golfers, on the other hand, tend to contact the majority of their wedge shots on the toe, which leads to inconsistent ball flight, and a twisting of the club head during impact that leads to bad feel.

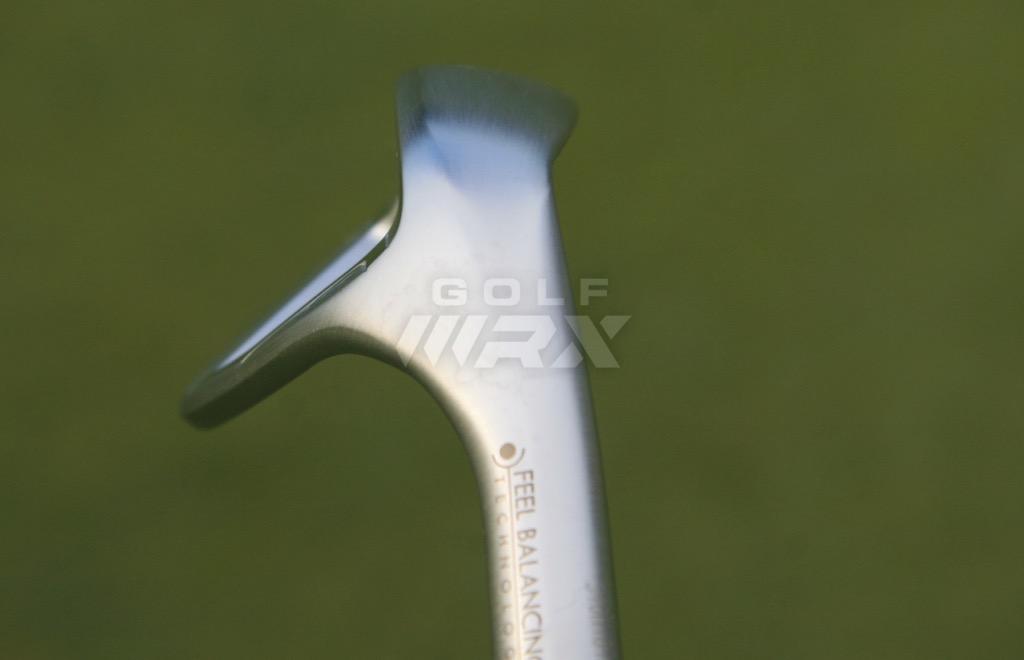

Moving the CG more toward the center of the club face sounds like a no-brainer, but it wasn’t wasn’t without compromise. On top of creating a “Micro-Cavity” inside the hosels of the RTX-3 wedges – basically hollowing them out — the company was forced to shorten the hosels to achieve the feat, and that changed the way the wedges looked at address.

If you understand how particular golfers can be about the looks of their clubs, you know that even if a club performs better, it might not make it to the first tee of a PGA Tour event, or to the cash register of a golf equipment retailer if it doesn’t look right. To solve the problem, Cleveland designers went to work reshaping the hosels in an attempt to replicate the Cleveland’s signature wedge look at address.

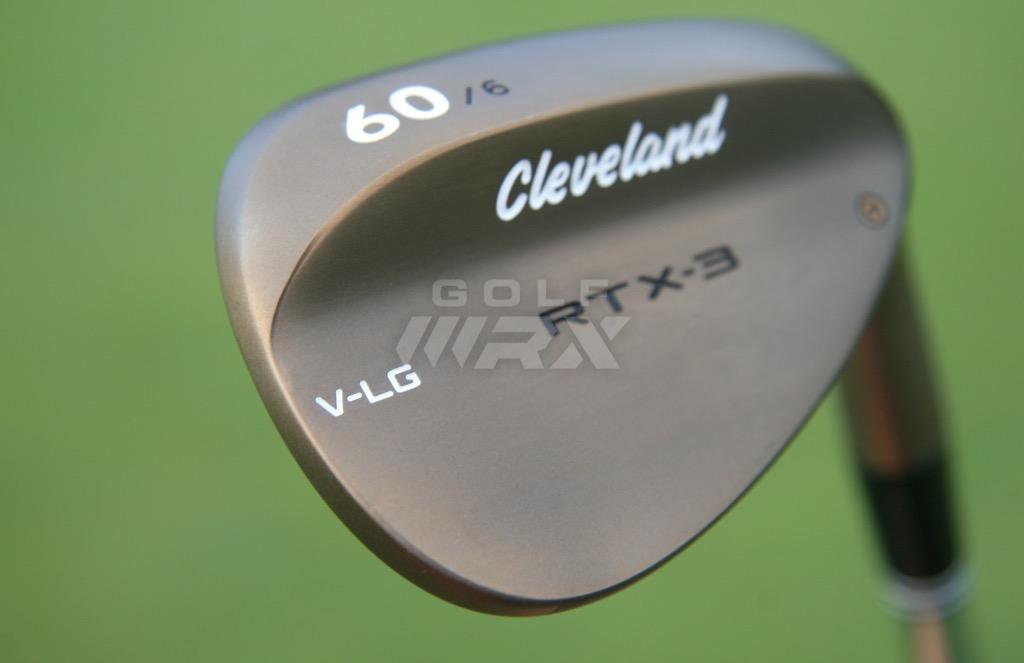

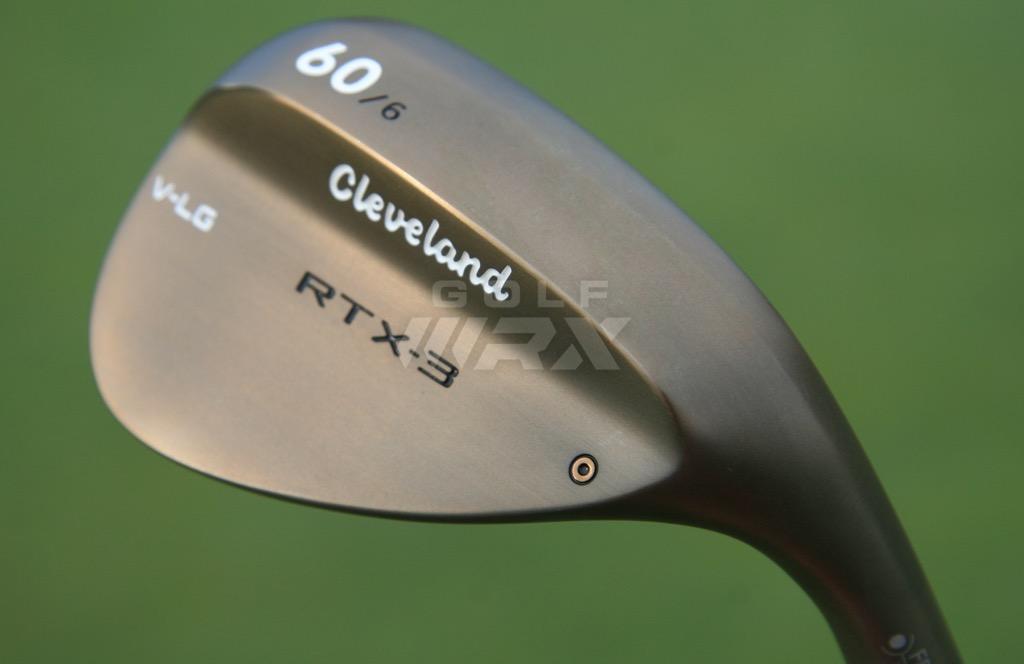

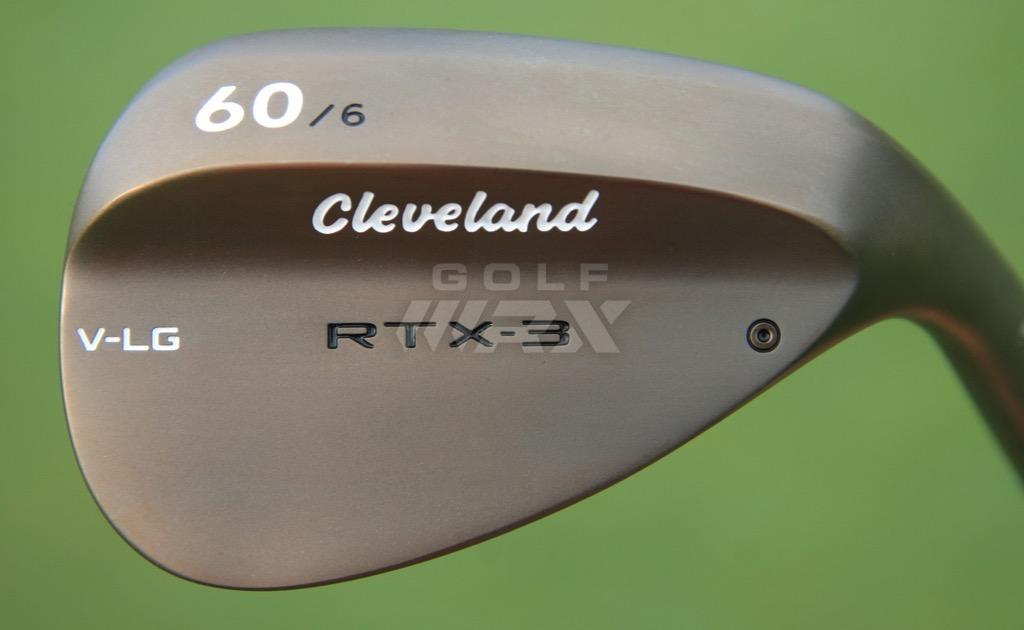

Cleveland’s new Tour Raw finish will be the most popular of the company’s finishes on Tour.

The part of the wedge golfers can’t see at address – the sole – has also changed, and it could make the biggest difference for many golfers. Golf equipment fans might be familiar with Cleveland/Srixon’s Tour V.T. Sole, which is used on Srixon’s Z-Series irons. Cleveland engineers found the technology also had merit in its new wedge line, as the shape of the soles were shown to contribute to reduced turf resistance — a Cleveland study showed 33 percent less club head speed lost.

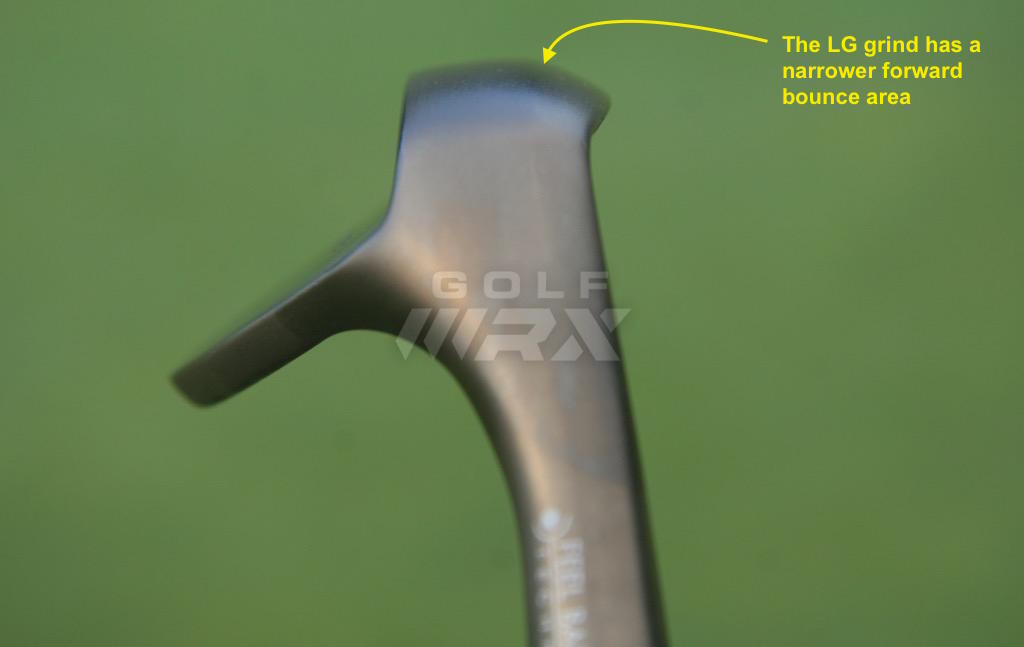

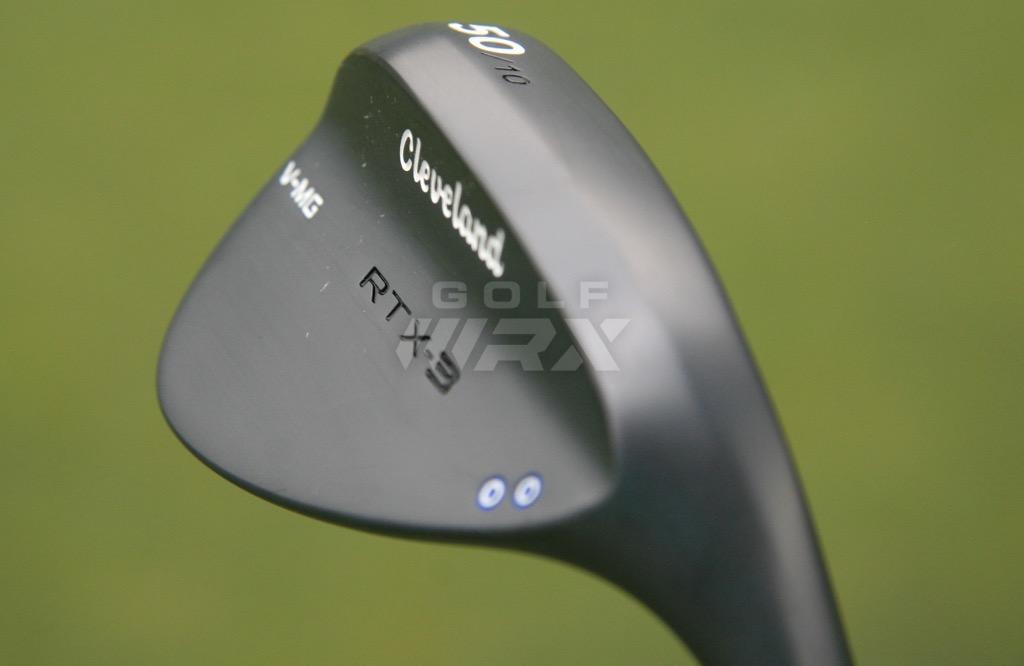

Cleveland calls its new sole designs “V-Soles,” and they’re used in all three of the RTX-3’s different grinds: 1-Dot, 2-Dot and 3-Dot. The 2-Dot (V-MG Grind) is considered neutral, and most similar to grind used on Srixon’s Z-Series irons. The 1-Dot (V-LG Grind) has a narrower, lower-bounce sole, which is better for golfers who play firmer golf courses or have a shallower angle of attack. The 3-Dot (V-FG Grind) has a wider sole and more effective bounce, which is better for golfers who play golf courses with wetter conditions or have steeper angles of attack.

“The grinds get the sole in and out of the ground faster,” Ripp says. “And because the soles are narrowed, the leading edge still stays low to the turf when you open it up.”

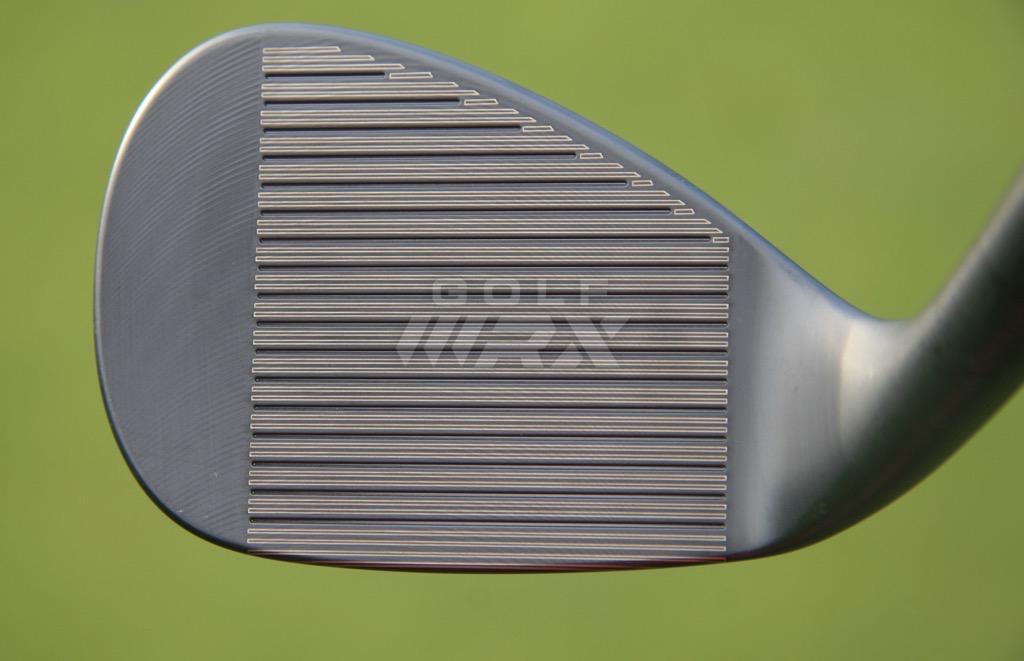

The pursuit of more consistency also extends to the wedge faces of the RTX-3 wedges, which use narrower, deeper grooves that allowed engineers to add two additional grooves to the club face. Like Cleveland’s previous RTX 2.0 wedges, RTX-3 models are made with the company’s two-pass, micro-milling process, but it’s applied slightly differently depending on loft. The 46-52-degree wedges have a circular milling pattern that’s angled toward the leading edge of the wedges. The 54-64-degree wedges use a pattern that’s angled toward the toe, which creates more friction on open-face shots. As in the RTX 2.0, Cleveland also uses laser milling between grooves to reach the USGA’s limit on club face roughness. Together, the technologies helps prevent fliers from the rough, and add more predictability on shots around the green, Ripp says.

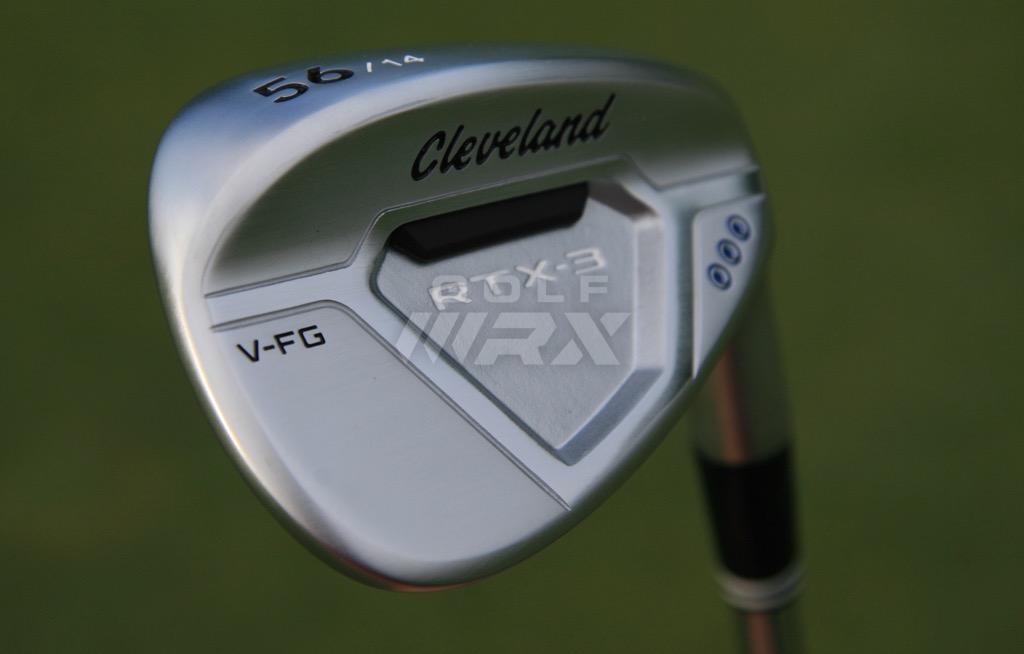

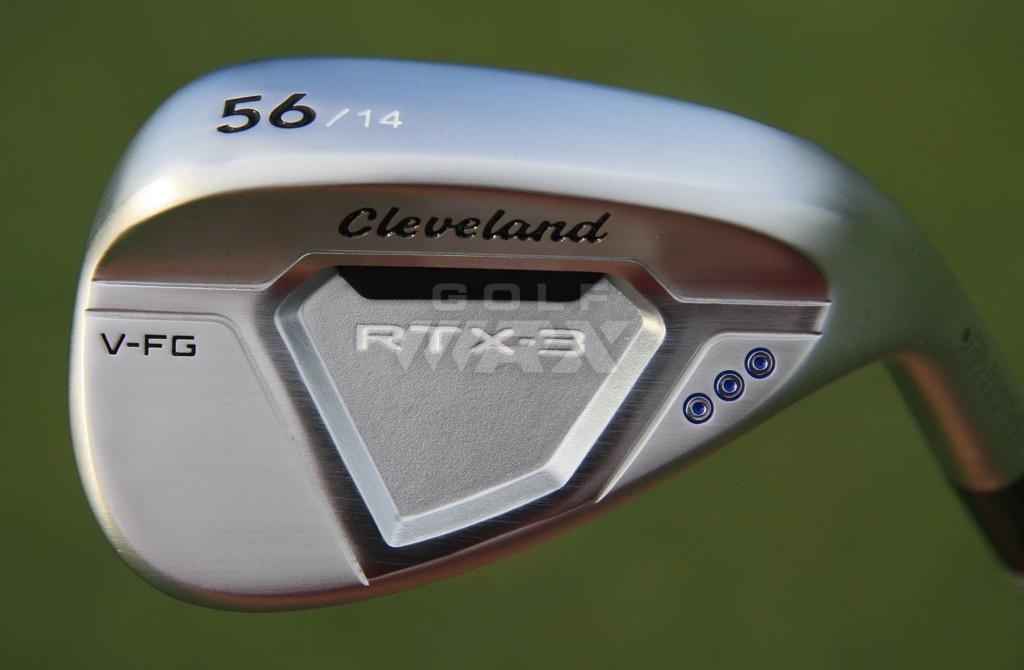

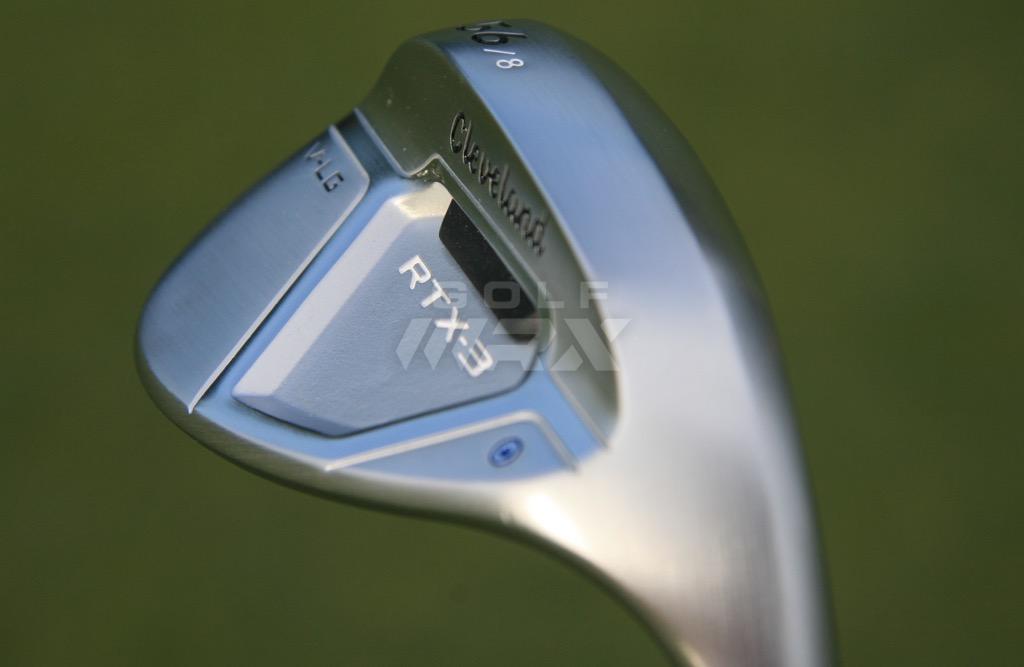

: Cleveland’s RTX-3 Cavity Back wedges offer more forgiveness than Blade models.

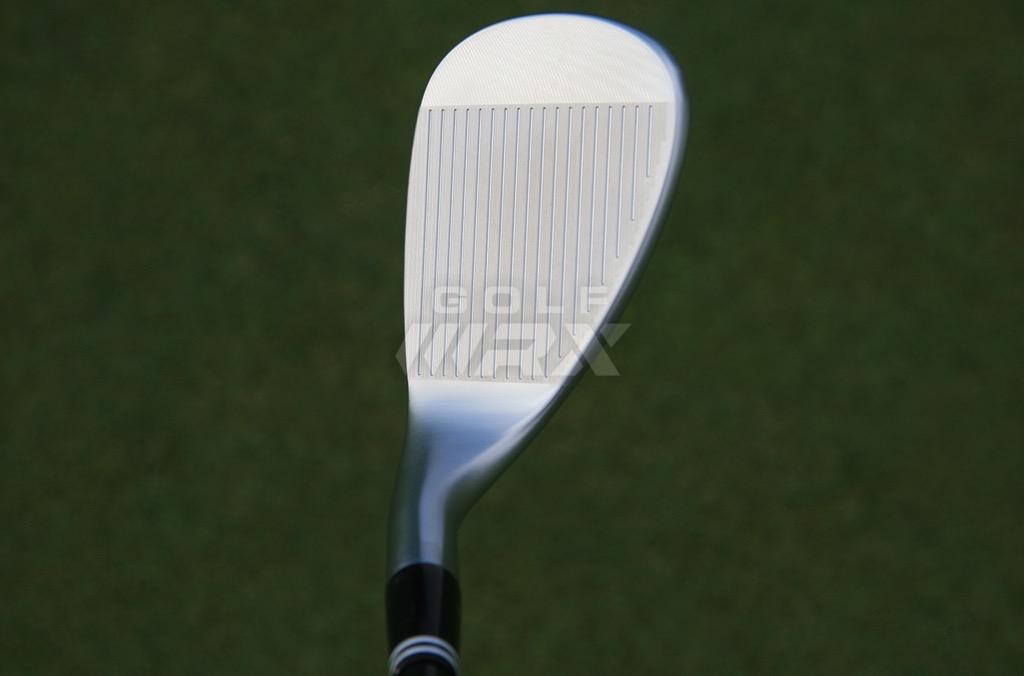

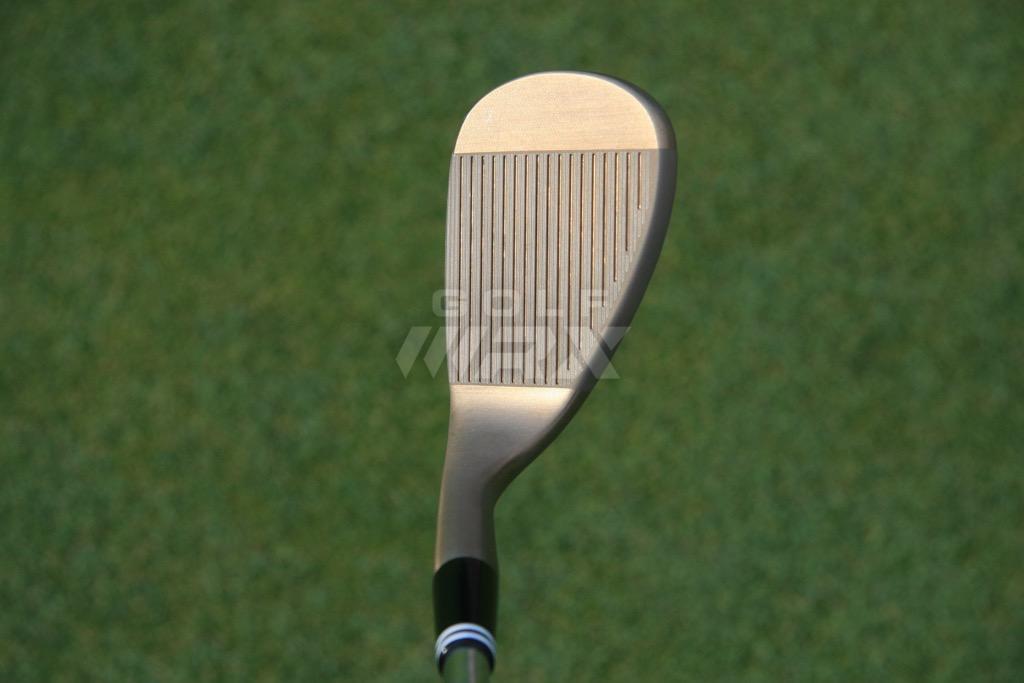

: At address, the RTX-3 Cavity Wedges are larger to improve confidence.

The RTX-3 wedges will be in stores September 16. The RTX-3 Blade wedges are available in three finishes (Tour Satin, Black Satin and Tour Raw finishes). RTX-3 Cavity Back wedges, which have a larger club heads, are offered in the Tour Satin finish only.

With the release of the RTX-3 wedges, Cleveland will update its Wedge Analyzer App, which fits golfers into the correct wedges and sole grinds by calculating angle of attack and pitching wedge loft. Fittings can be done in as few as two swings, and with or without a ball.

See what GolfWRX Members are saying about the new wedges in our forum.

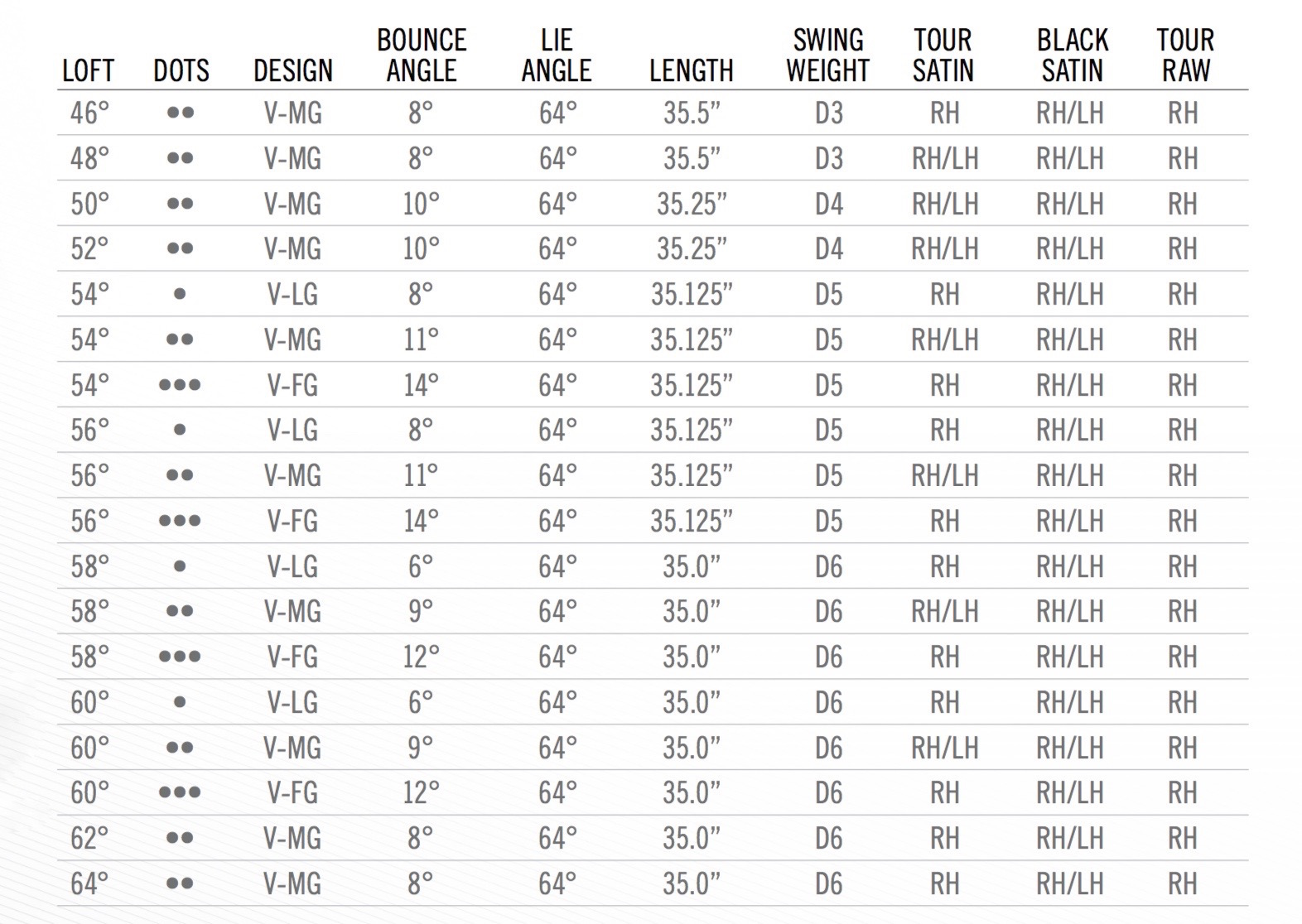

Specs from Cleveland
